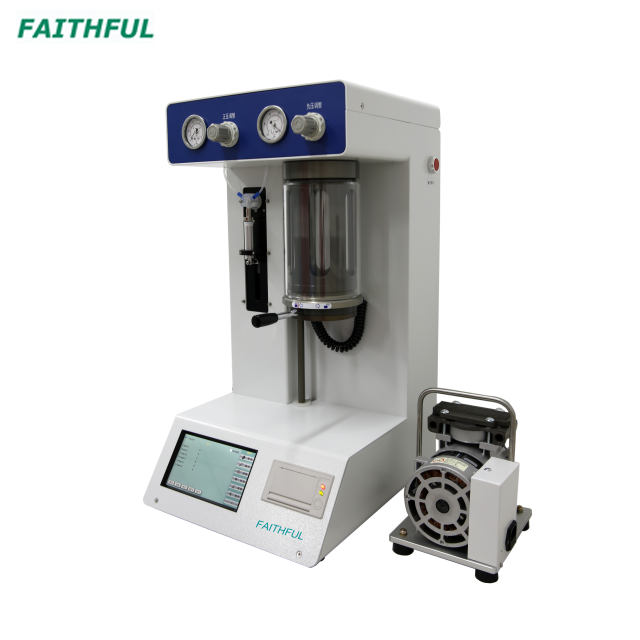

FPC-L2
FAITHFUL
International Hydraulic Standards Committee;
High-precision laser sensor, wide test range, stable performance, low noise andhigh resolution;
Using high-pressure syringe pump sampling method, the sampling volume can beset by oneself, the injection speed is stable, and the sampling accuracy is high;
The sampling system that combines positive and negative pressure can achievesample degassing and is suitable for testing products with different viscosities;
Built-in pressure sensor, built-in air purification system in the host;
A variety of sampling containers can be used;
7-inch color touch screen, supports Chinese and English dual interface;
Built-in multiple calibration curves, compatible with all commonly used domestic and foreian standards for calibration;
Built-in more than ten common standards such as GJB-420A,GJB-420B, NAS1638.GB/T14039.IS04406.SAE4059CPC, SAE4059F,SAE749D,FOCT17216,QC/T29104, JB/T9737,DLT432, HH005-2018, etc., and supports custom standards Testing, built-in data analysis system;
Can carry out cleaning detection, pre-set the target cleaning requirement particle concentration, display the cleaningstatus in real time during the cleaning process, and automatically stop when the requirements are met;
The particle size can be set arbitrarily, with nearly 10.000 built-in particle sizes for easy particle size analysis:Has RS232 interface, supports 485 communication, and supports U disk storage method: According to customer needs, up to 64 detection channels can be set up at the same time:Have more than 5 account settings and individually set operator permissions.
International Hydraulic Standards Committee;
High-precision laser sensor, wide test range, stable performance, low noise andhigh resolution;
Using high-pressure syringe pump sampling method, the sampling volume can beset by oneself, the injection speed is stable, and the sampling accuracy is high;
The sampling system that combines positive and negative pressure can achievesample degassing and is suitable for testing products with different viscosities;
Built-in pressure sensor, built-in air purification system in the host;
A variety of sampling containers can be used;
7-inch color touch screen, supports Chinese and English dual interface;
Built-in multiple calibration curves, compatible with all commonly used domestic and foreian standards for calibration;
Built-in more than ten common standards such as GJB-420A,GJB-420B, NAS1638.GB/T14039.IS04406.SAE4059CPC, SAE4059F,SAE749D,FOCT17216,QC/T29104, JB/T9737,DLT432, HH005-2018, etc., and supports custom standards Testing, built-in data analysis system;
Can carry out cleaning detection, pre-set the target cleaning requirement particle concentration, display the cleaningstatus in real time during the cleaning process, and automatically stop when the requirements are met;
The particle size can be set arbitrarily, with nearly 10.000 built-in particle sizes for easy particle size analysis:Has RS232 interface, supports 485 communication, and supports U disk storage method: According to customer needs, up to 64 detection channels can be set up at the same time:Have more than 5 account settings and individually set operator permissions.
Model | LPC-L2 |
Light Source | A semiconductor laser |
Particle Size Range | 0.8μm~600μm (calibrated according to ACFTD calibration 1~100μm or ISO MTD calibration 4~70μm(c)) |
Detection Channel | 8~64 channels are optional (factory default 64), and the particle size can be set arbitrarily |
Sensitivity | 0.8μm (ISO4402) or 3μm (c) (GB/T18854, ISO11171) |
Resolution | <10% (GB/T18854, ISO11171) |
Repeatability | RSD<2% |
Sample Testing Viscosity | ≤650cSt (excessive viscosity can be detected with heating or dilution methods) |
Sampling Volume | 0.2~6000mL,interval 0.1mL |
Sampling Accuracy | ≤±0.5% |
Sampling Speed | 5~80mL/min |
Pressure Chamber | Positive and negative pressure chamber devices enable sample degassing and high-viscosity sample detection |
Maximum Vacuum Of Pressure Chamber | -0.08Mpa |
Maximum positive pressure of air pressure chamber | 0.8 Mpa |
Maximum Particle Concentration | 12000-40000 capsules/mL |
Detect Sample Temperature | 0℃~80℃ |
Working Temperature | -20℃~60℃ |
Storage Temperature | -30℃~80℃ |
Power | 110~245V AC、50/60Hz, 70W |
Host Size | 340mmx410mmx650mm |
Air Pump Size | 180mmx160mmx220mm |
Host Net Weight | >23kg Air pump net weight: >5.5kg |
Model | LPC-L2 |
Light Source | A semiconductor laser |
Particle Size Range | 0.8μm~600μm (calibrated according to ACFTD calibration 1~100μm or ISO MTD calibration 4~70μm(c)) |
Detection Channel | 8~64 channels are optional (factory default 64), and the particle size can be set arbitrarily |
Sensitivity | 0.8μm (ISO4402) or 3μm (c) (GB/T18854, ISO11171) |
Resolution | <10% (GB/T18854, ISO11171) |
Repeatability | RSD<2% |
Sample Testing Viscosity | ≤650cSt (excessive viscosity can be detected with heating or dilution methods) |
Sampling Volume | 0.2~6000mL,interval 0.1mL |
Sampling Accuracy | ≤±0.5% |
Sampling Speed | 5~80mL/min |
Pressure Chamber | Positive and negative pressure chamber devices enable sample degassing and high-viscosity sample detection |
Maximum Vacuum Of Pressure Chamber | -0.08Mpa |
Maximum positive pressure of air pressure chamber | 0.8 Mpa |
Maximum Particle Concentration | 12000-40000 capsules/mL |
Detect Sample Temperature | 0℃~80℃ |
Working Temperature | -20℃~60℃ |
Storage Temperature | -30℃~80℃ |
Power | 110~245V AC、50/60Hz, 70W |
Host Size | 340mmx410mmx650mm |
Air Pump Size | 180mmx160mmx220mm |
Host Net Weight | >23kg Air pump net weight: >5.5kg |
