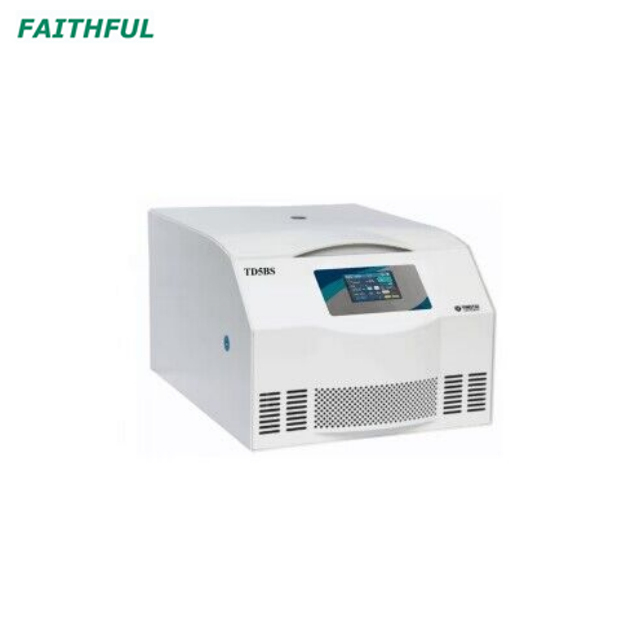

FTD5BS
Faithful
●Adopt large torque brushless frequency conversion motor, maintenance-free, no dust, fast lifting speed.
●Induction automatic electric suction door lock, with emergency door opening device; self-inspection and
protection of door lock, overspeed, unbalance, etc., safe and reliable.
●Using a microcomputer processor for precise control, the high-definition touch screen "Intelligent System"
version displays both setting parameters and real-time parameters: Speed, RCF, Time, Rise/Fall rate, Rotor No,
Door cover status, etcionion.
●Using a unique spring cone sleeve to connect the rotating head and spindle, the rotating head is locked 360
degrees, and the loading and unloading of the rotating head is non directional, fast and simple (with technical patents).

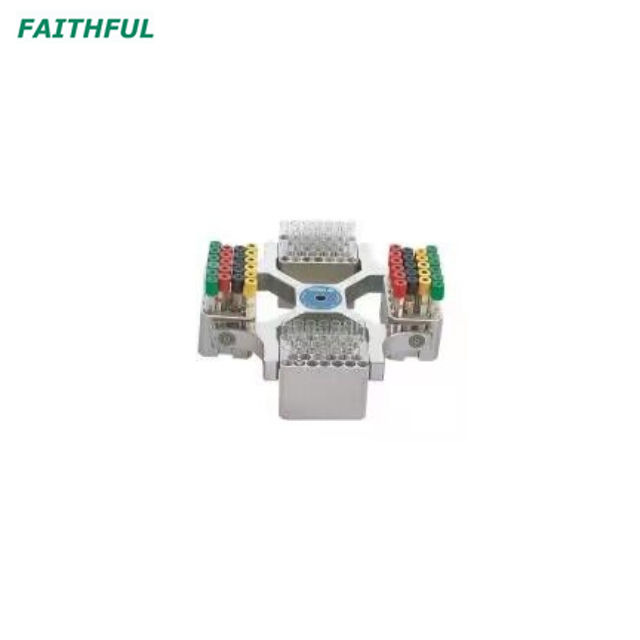

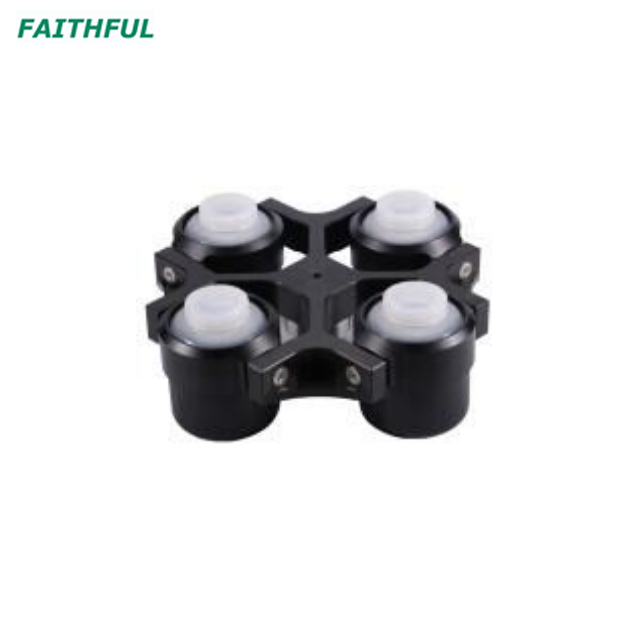

●Aero forged aluminum rotors (except multi-tube frame rotors) and various Teflon adapters are available.
●Can store and call 100 sets of programs, with 9 acceleration rates and 10 deceleration rate options.
●The whole machine is al-steel structure, stainless steel centrifugal chamber; multi-layer protection design, three-stage vibration reduction, safe and stable.
●Optional: Automatic recognition of rotor magnetism to avoid misoperation and overspeed operation.
●Adopt large torque brushless frequency conversion motor, maintenance-free, no dust, fast lifting speed.
●Induction automatic electric suction door lock, with emergency door opening device; self-inspection and
protection of door lock, overspeed, unbalance, etc., safe and reliable.
●Using a microcomputer processor for precise control, the high-definition touch screen "Intelligent System"
version displays both setting parameters and real-time parameters: Speed, RCF, Time, Rise/Fall rate, Rotor No,
Door cover status, etcionion.
●Using a unique spring cone sleeve to connect the rotating head and spindle, the rotating head is locked 360
degrees, and the loading and unloading of the rotating head is non directional, fast and simple (with technical patents).
●Aero forged aluminum rotors (except multi-tube frame rotors) and various Teflon adapters are available.
●Can store and call 100 sets of programs, with 9 acceleration rates and 10 deceleration rate options.
●The whole machine is al-steel structure, stainless steel centrifugal chamber; multi-layer protection design, three-stage vibration reduction, safe and stable.
●Optional: Automatic recognition of rotor magnetism to avoid misoperation and overspeed operation.
Max Speed | 5000rpm | Mas RCF | 4730×g |
Max Volume | 4×800ml Swing Rotor | Speed Aeeuracy | ±10rpm |
Timer | 1s~~99h59min59s | Nohe | S6SdBA |
Power supply | AC110/220V.50/6OHZ. | Net Weight | 67kg |
Dimension | 680×500×385mm | Package | 880×580×560mm,90kg |
Max Speed | 5000rpm | Mas RCF | 4730×g |
Max Volume | 4×800ml Swing Rotor | Speed Aeeuracy | ±10rpm |
Timer | 1s~~99h59min59s | Nohe | S6SdBA |
Power supply | AC110/220V.50/6OHZ. | Net Weight | 67kg |
Dimension | 680×500×385mm | Package | 880×580×560mm,90kg |
