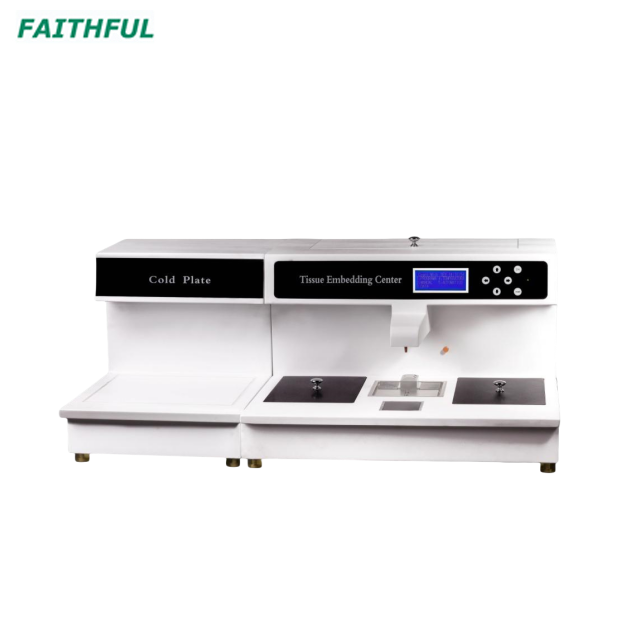

Tissue Embedding Center YD-6LA(with Cold Plate )

Availability:
Quantity:
Inquire Add to Basket

  • YD-6LA

  • FAITHFUL


Specification:
●Capacity of the paraffinpan: 6000 ml.
●Temperature range of Paraffin pan: 0 ~99℃
●Temperature range of working table:0 ~99℃
●Temperature range of left and right warming box: 0 ~99℃
●Freezing range temperatureof cold plate: 0 ~ -20℃
●Freezing range temperatureof small cold spot in working table : 0 ~ -10℃

●Control mode: manual touch plate orfootswitch

●About 120pcs of molds or 140pcs cassettes for eachhot reservoir

●Capacity of Cold plate :About 50-60pcs of Tissue mold or cassettes
●Environment temperature:0℃~ 40℃

●Time control: Switch onand switch offtime of the machine is set in 24 hours


optionally.
●Nominal voltage: AC110V-220V±10％.
●Rated frequency:50Hz/60Hz
●Power consumption: (dispenser part)10A/1800W, (cold plate part)5A/ 130W
●Dimension: Embedding center (60x52x36.5cm), Cold plate (36x52x36.5cm)
●Gross /Net Weight: 65/35kg(for YD-6D) 110/65kg(for YD-6LA)
download yd-6la embedding center.pdf
