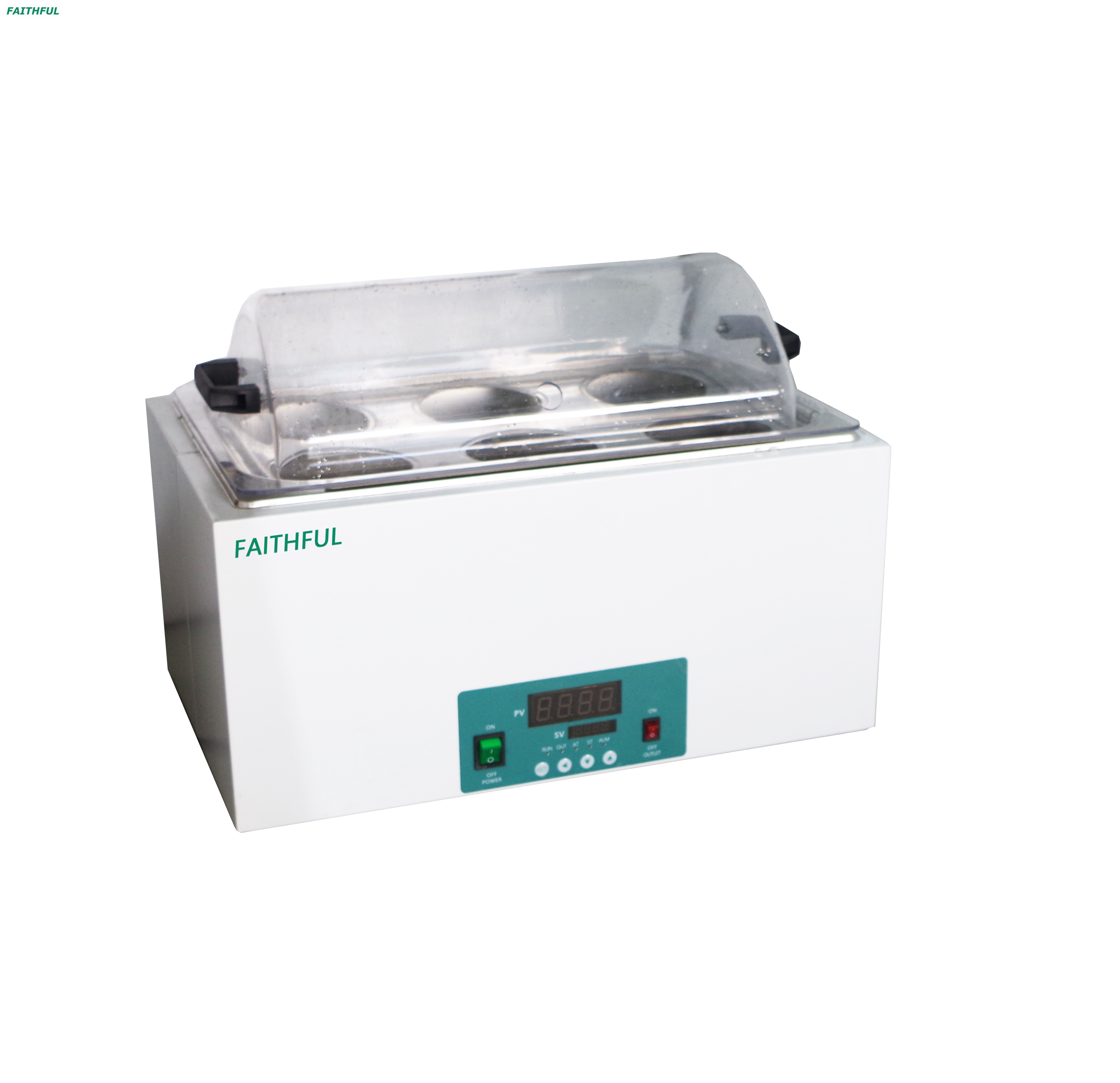

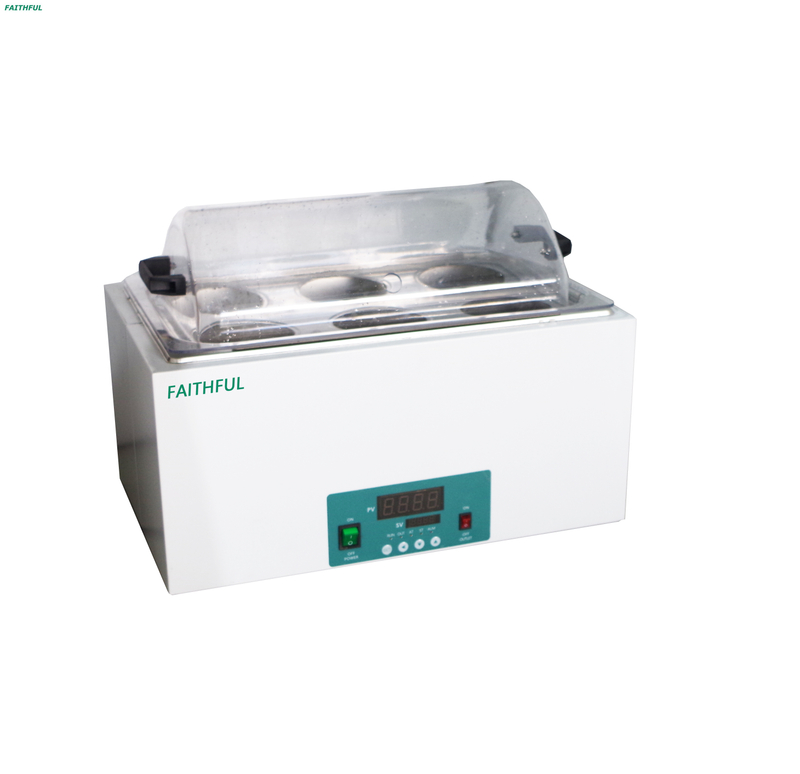

HHW11L SHHW11L HHW30L SHHW30L
Faithful
The inner liner and water bath cover are processed using high-quality stainless steel stretching technology, and the surfaceis treated withanti-corrosion technology.The top cover is made of high-temperature resistant plastic material, which is lightweight and beautiful.
Add a water discharge switch, one click operation, convenient for waterdischarge.
The anti dry burning(water shortage and power outage) functionensures the safe operation of the product.
The inner liner and water bath cover are processed using high-quality stainless steel stretching technology, and the surfaceis treated withanti-corrosion technology.The top cover is made of high-temperature resistant plastic material, which is lightweight and beautiful.
Add a water discharge switch, one click operation, convenient for waterdischarge.
The anti dry burning(water shortage and power outage) functionensures the safe operation of the product.
Model | HHW11L | SHHW11L | HHW30L | SHHW30L | |
Heating Mode | Nature water convection heat transfer | ||||
Function | Temp. Range | RT+5-65℃ | RT+5-100℃ | RT+5-65℃ | RT+5-100℃ |
Temp. Resolution Ratio | 0.1℃ | ||||
Temp. Motion | ±0.5℃ | ||||
Temp. Uniformity | ±1.0℃ | ||||
Structure | inner Chamber | SUS304 stretching | |||
Outer Shell | Cold roling steel electrostatic spraying exterior | ||||
Heater | Stainless steel heating tube | ||||
Power Rating | 0.3kW | 0.6kW | 1.0kW | 1.5kW | |
Controller | Temp.Control Mode | PID | |||
Temp. Setting Mode | Touch button setting | ||||
Temp. Display Mode | Meaturng temperature displays on the three digtal tubes upper tow, set tomperature displays on the lower row | ||||
Timer | 0-9990min (with timing walt function) | ||||
Operation Function | Fixed temperature operation, timing function, auto stop. | ||||
Program Mode | Optional | ||||
Additioral Function | Deviation Correction, menu key locked, power fallure back-up. power-off memory | ||||
Sensor | NTC | ||||
Safety Device | Over temperature alam | ||||
Inner Chambersize(W"L"H)(mm) | 295*235*150 | 295*235*150 | 500*296*200 | 500*296*200 | |
Exterior Size(W"L"H)(mm) | 360*297*345 | 360*297*345 | 565*358*395 | 565*358*395 | |
Packing Size(W"L"H)(mm) | 390*327*395 | 390*327*395 | 595*388*445 | 595*388*445 | |
Volume | 11L | 30L | |||
Specification | Load Per Rack | 5kg | |||
Shelf Number | 1 | ||||
Power Supply(50160Hz)Current Rating | AC220V/1.3A | AC220V/2.7A | AC220V/4.5A | AC220V/6.BA | |
Nw/GW (kg) | 3.3/4 | 4.5/5 | 6/7 | 7.5/9 |
Model | HHW11L | SHHW11L | HHW30L | SHHW30L | |
Heating Mode | Nature water convection heat transfer | ||||
Function | Temp. Range | RT+5-65℃ | RT+5-100℃ | RT+5-65℃ | RT+5-100℃ |
Temp. Resolution Ratio | 0.1℃ | ||||
Temp. Motion | ±0.5℃ | ||||
Temp. Uniformity | ±1.0℃ | ||||
Structure | inner Chamber | SUS304 stretching | |||
Outer Shell | Cold roling steel electrostatic spraying exterior | ||||
Heater | Stainless steel heating tube | ||||
Power Rating | 0.3kW | 0.6kW | 1.0kW | 1.5kW | |
Controller | Temp.Control Mode | PID | |||
Temp. Setting Mode | Touch button setting | ||||
Temp. Display Mode | Meaturng temperature displays on the three digtal tubes upper tow, set tomperature displays on the lower row | ||||
Timer | 0-9990min (with timing walt function) | ||||
Operation Function | Fixed temperature operation, timing function, auto stop. | ||||
Program Mode | Optional | ||||
Additioral Function | Deviation Correction, menu key locked, power fallure back-up. power-off memory | ||||
Sensor | NTC | ||||
Safety Device | Over temperature alam | ||||
Inner Chambersize(W"L"H)(mm) | 295*235*150 | 295*235*150 | 500*296*200 | 500*296*200 | |
Exterior Size(W"L"H)(mm) | 360*297*345 | 360*297*345 | 565*358*395 | 565*358*395 | |
Packing Size(W"L"H)(mm) | 390*327*395 | 390*327*395 | 595*388*445 | 595*388*445 | |
Volume | 11L | 30L | |||
Specification | Load Per Rack | 5kg | |||
Shelf Number | 1 | ||||
Power Supply(50160Hz)Current Rating | AC220V/1.3A | AC220V/2.7A | AC220V/4.5A | AC220V/6.BA | |
Nw/GW (kg) | 3.3/4 | 4.5/5 | 6/7 | 7.5/9 |
