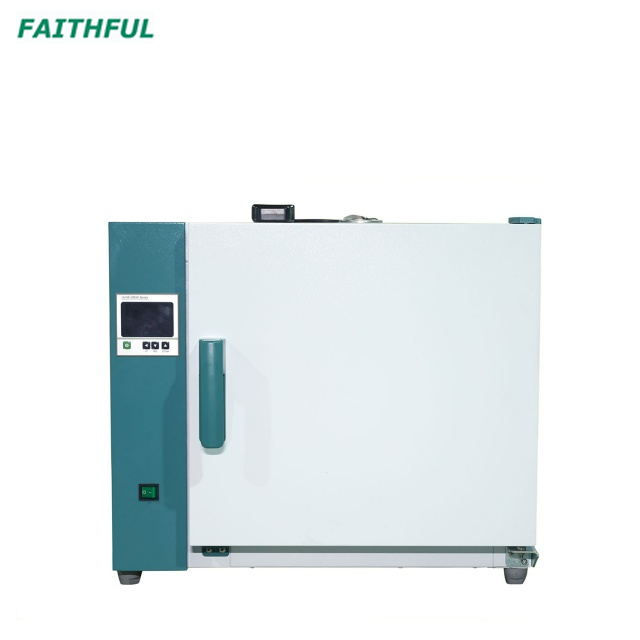

Horizontal Drying Oven (Anti-Corrosive Type)

Circulation Mode

Forced Convection

Function

Used Temp.Range

RT+10-250℃

Temp.Resolution

0.1℃

Temp.Fluctuation

±1℃

Temp.Uniformity

± 2.5%

Structure

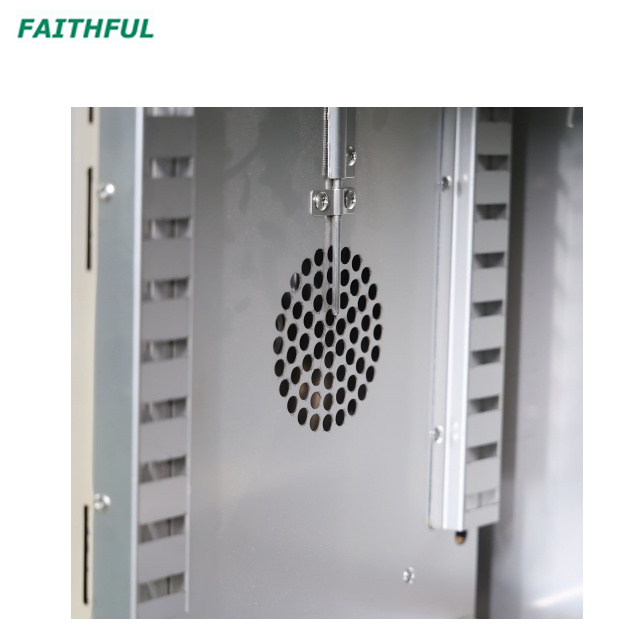

Inner Chamber

SUS316 stainless steel

Outer Shell

Cold rolling stoel electrostatic spraying exterior

Insulation Layer

High quality rock wooi board(with CE)

Heater

Stainless steel electric heating tube

Controller

Power Rating

1.2kW

1.6kW

2.3kW

3.0kW

Exhaust Hole

Eahaust Hole 4 35mm top(with function of test hole)

Temp. Cantrol Mode

Two Temperature Section PID Inteligent

Temp. Setting Mode

Touch button setting

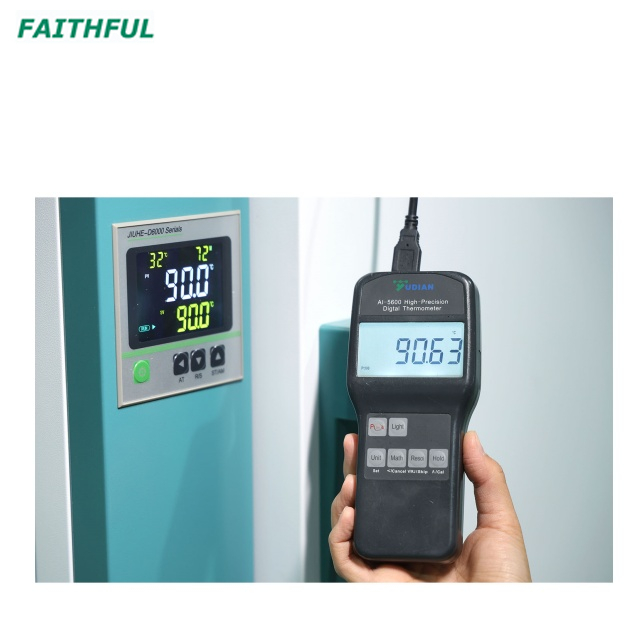

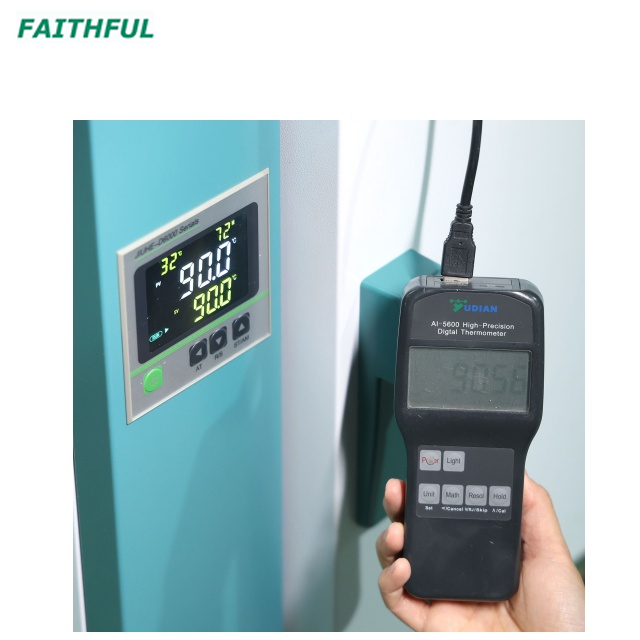

Tamp. Display Mode

Measuring Temperature: Display on the upper row; Setting Temperature: Display on the lower row (LED)

Timer

0-9999min(with timing wait function)

Operation Function

Fixed Temperature Operation, Timing Function, Auto Stop

Additional function

Sensor Deviation Correction, Temperature Overshoot Self-tuning. Intermal Parameter Locking. Power-Off Parameter Memory

Sensor

pt100

Safety Device

Over Temperature Sound-light Alarm

Specificatlon

Inner Chamber Size(W"L"H)(mm)

350*350*350

450*350450

550*450*550

600*500*750

Exterior Size(W"L"H)(mm)

652*472*587

752*472*687

852*572*786

902*622*986

Packing Size(W"L"H)(mm)

745*605*745

845*605*850

945*705*950

955*755*1150

Volume

43L

71L

136L

225L

Max Shelf Number

9

13

17

25

Load Per Rack

15kg

Sheltf Space

25mm

Current Rating(50/6OHZ)

AC220V/5.5A

AC220V/7.3A

AC220V/9.1A

AC220V/13.6A

NWIGW(KG)

33/37

45/50

62/68

77/96

Acoessory

Shelf

2

Shell Frame

4

Optional Accessories

Shelves, Program Controller
