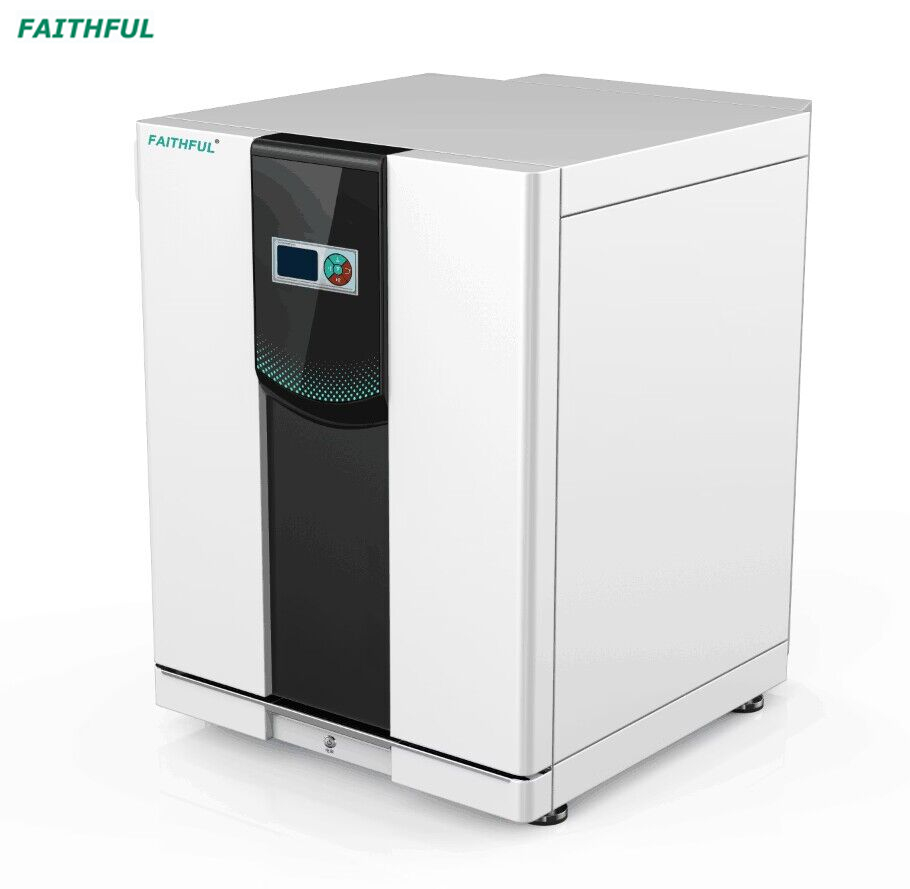

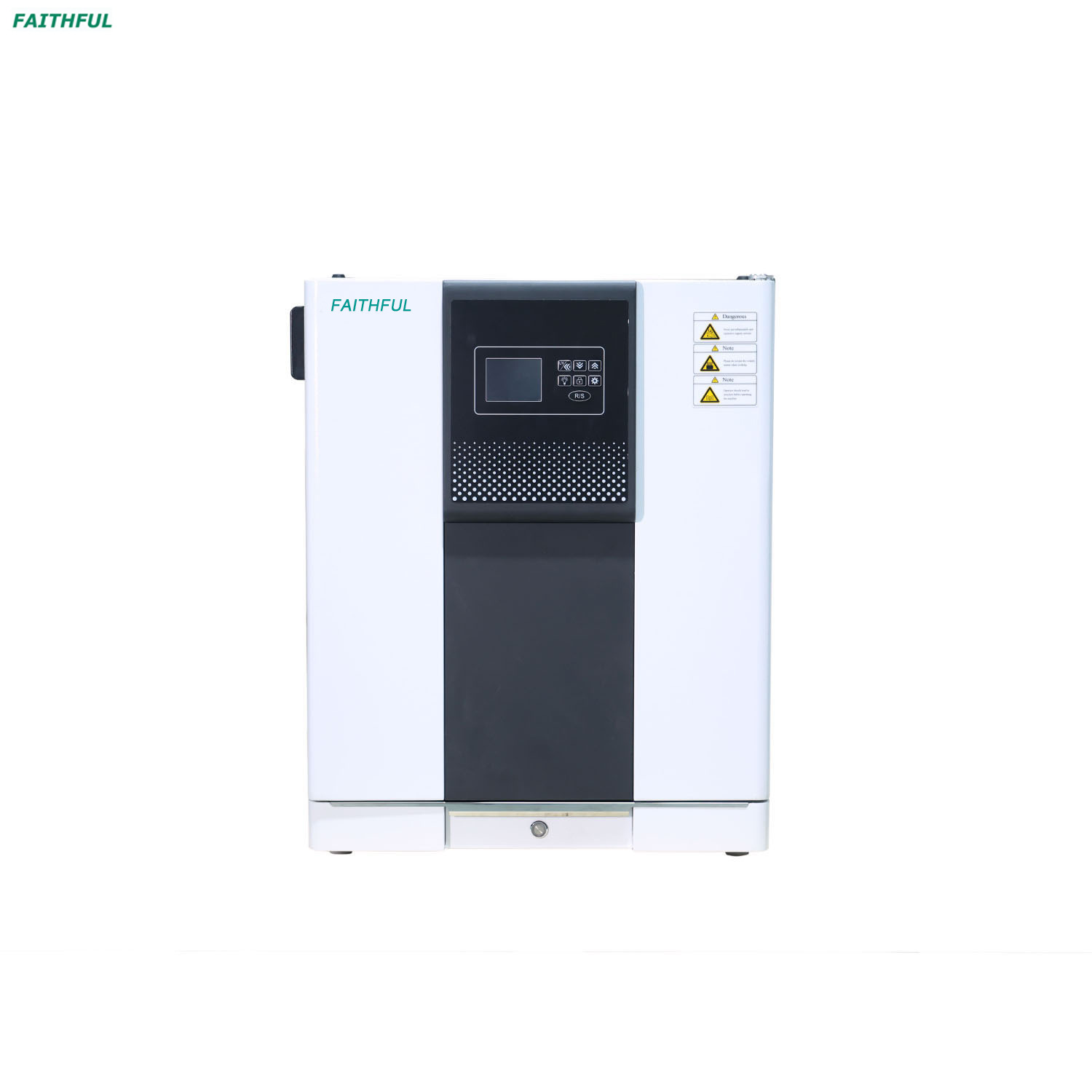

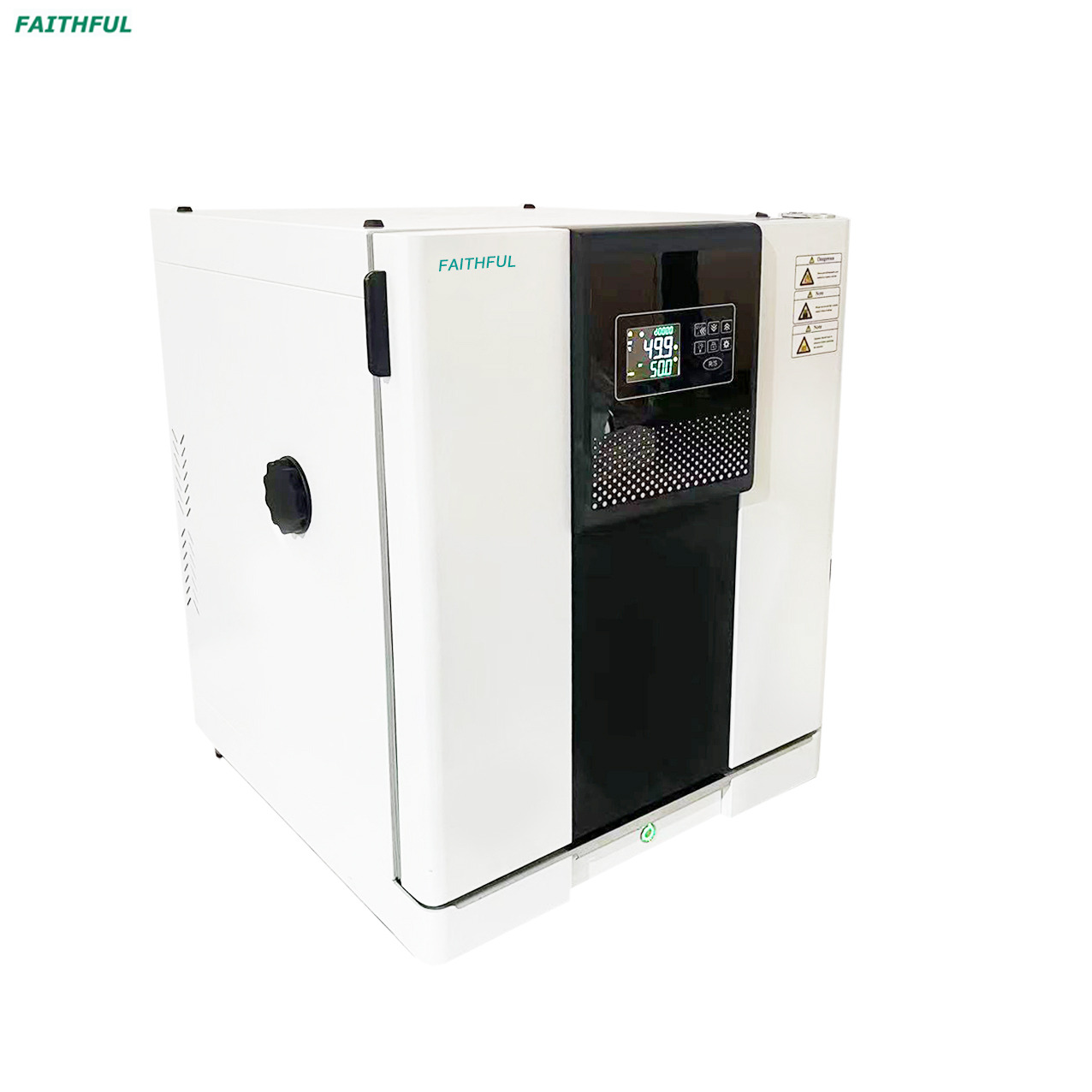

Semiconductor Refrigeration Incubator/Peltier Incubator

Semiconductor refrigeration low temperature incubator uses Peltier (semiconductor) refrigeration technology to achieve low temperature control of the incubator, which has the advantages of energy saving, environmental protection and high efficiency, and has heating andcooling functions. lt is an ideal constant temperature equipment for the cultivation of bacteriamold and other microorganisms in a low temperature environment, as well as sample preservation, plant cultivation, plant breeding and other tests. Widely used in environmental protection, health and epidemic prevention, drug testing, agriculture and livestock, aquaticproducts, universities, research institutes and other fields of major laboratories.
Availability:
Quantity:
  • FPI-45 FPI-70

  • Faithful

LCD color screen,PlD control technology, temperature is accurate and stable;

It has a glass inner door, which is convenient for experimental observation.

At the sametime, the chamber behind the glass door is equipped with a door control switch, and theswitch is linked with the control system;

The new semiconductor refrigeration system ensures the long-term stable operation ofthe refrigeration system;

Stacking foot design. The machine can be stacked to save space, which can improveusage efficiency (same specification).

Model

FPI-45

FPI-70

Cycle Mode

Forced Convection

Function

Temp.Range

20℃-65℃

Temp.Resolution Radio

0.1℃

Temp.Motion

±0.5℃

Temp.Uniformity

±0.5℃(37℃)

Structure

Inner Chamber

Mirror Stainless Steel

Outer Shell

Cold rolling steel electrostatic spraying exterior

Insulation Layer

Polyurethane

Heater

Heating Element

Refrigerator

Semiconductor Chilling Plate

Power Rating

0.35kW

0.5kW

Controller

Temp.Control Mode

Intelligent PID

Temp.Setting Mode

Touch button setting

Temp.Display Mode

Display on LCD

Timer

0-9999min(with timing wait function)

Operation Function

Fixed temperature operation,fixed timing operation,auto stop.

Additional Function

Sensor deviation correction,temperature overshoot self-tuning,.intemal parameter locking. power-off parameter memory

Sensor

PT100

Safety Device

Over temperature sound–light alarm

Specification

Inner Chamber Size(W*L'H)(mm)

330*320*430

415*350*500

Exterior Size(W*L*H)(mm)

415*445*758

500*475*828

Packing Size(W*L*H)(mm)

535*565*933

620*595*1003

Volume

45L

70L

Current Rating(50/60HZ)

AC220V/1.6A

AC220V/2.3A

NW/GW(KG)

20/25

35/45
